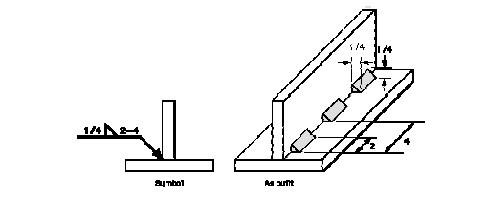

For intermittent welds, the length of each portion of the weld and the spacing of the welds are separated by a dash (length first, spacing second) and placed to the right of the fillet weld symbol.

Notice that the spacing, or pitch, is not the clear space between the welds, but the center-to-center (or end-to-end) distance.
