the left of the weld symbol

Ceramic Welding Backing | Ceramic Backing Welding| Ceramic Backing Taps

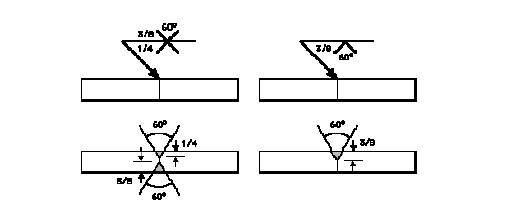

If the depth of the V is not the full thickness--or half the thickness in the case of a double V--the depth is given to the left of the weld symbol.

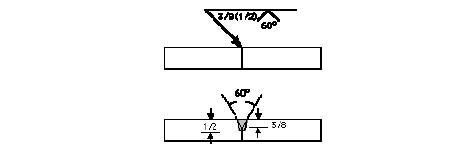

If the penetration of the weld is to be greater than the depth of the groove, the depth of the effective throat is given in parentheses after the depth of the V.
