Flare Bevel Groove Weld

Ceramic Welding Backing | Ceramic Backing Welding| Ceramic Backing Taps

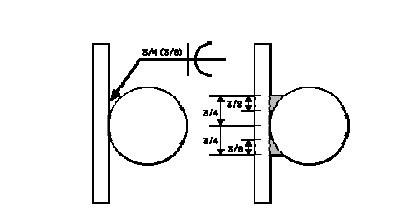

Commonly used to join a round or curved piece to a flat piece. As with the flare-V, the depth of the groove formed by the two curved surfaces and the intended depth of the weld itself are given to the left of the symbol, with the weld depth shown in parentheses. The symbol's perpendicular line is always drawn on the left side, regardless of the orientation of the weld itself.
