The weld symbol distinguishes between the two sides of a joint by using the arrow and the spaces above and below the reference line. The side of the joint to which the arrow points is known (rather prosaically) as the arrow side, and its weld is made according to the instructions given below the reference line. The other side of the joint is known (even more prosaically) as the other side, and its weld is made according to the instructions given above the reference line. The below=arrow and above=other rules apply regardless
of the arrow's direction. The flag growing out of the junction of the reference line and the arrow is present if the weld is to be made in the field during erection of the structure. A weld symbol without a flag indicates that the weld is to be made in the shop. In older drawings, a field weld may be denoted by a filled black circle at the junction between the arrow and the reference line.

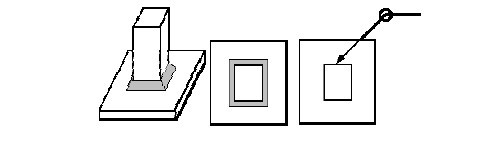

The open circle at the arrow/reference line junction is present if the weld is to go all around the joint, as in the example below.
