Types of rihui welds and their symbols

Ceramic Welding Backing | Ceramic Backing Welding| Ceramic Backing Taps

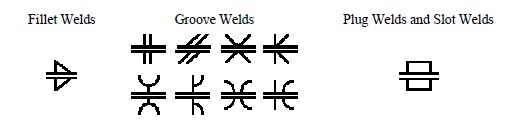

Each type of weld has its own basic symbol, which is typically placed near the center of the reference line (and above or below it, depending on which side of the joint it's on). The symbol is a small drawing that can usually be interpreted as a simplified cross-section of the weld. In the descriptions below, the symbol is shown in both its arrow-side and other-side positions.
